UooPower

ESS container

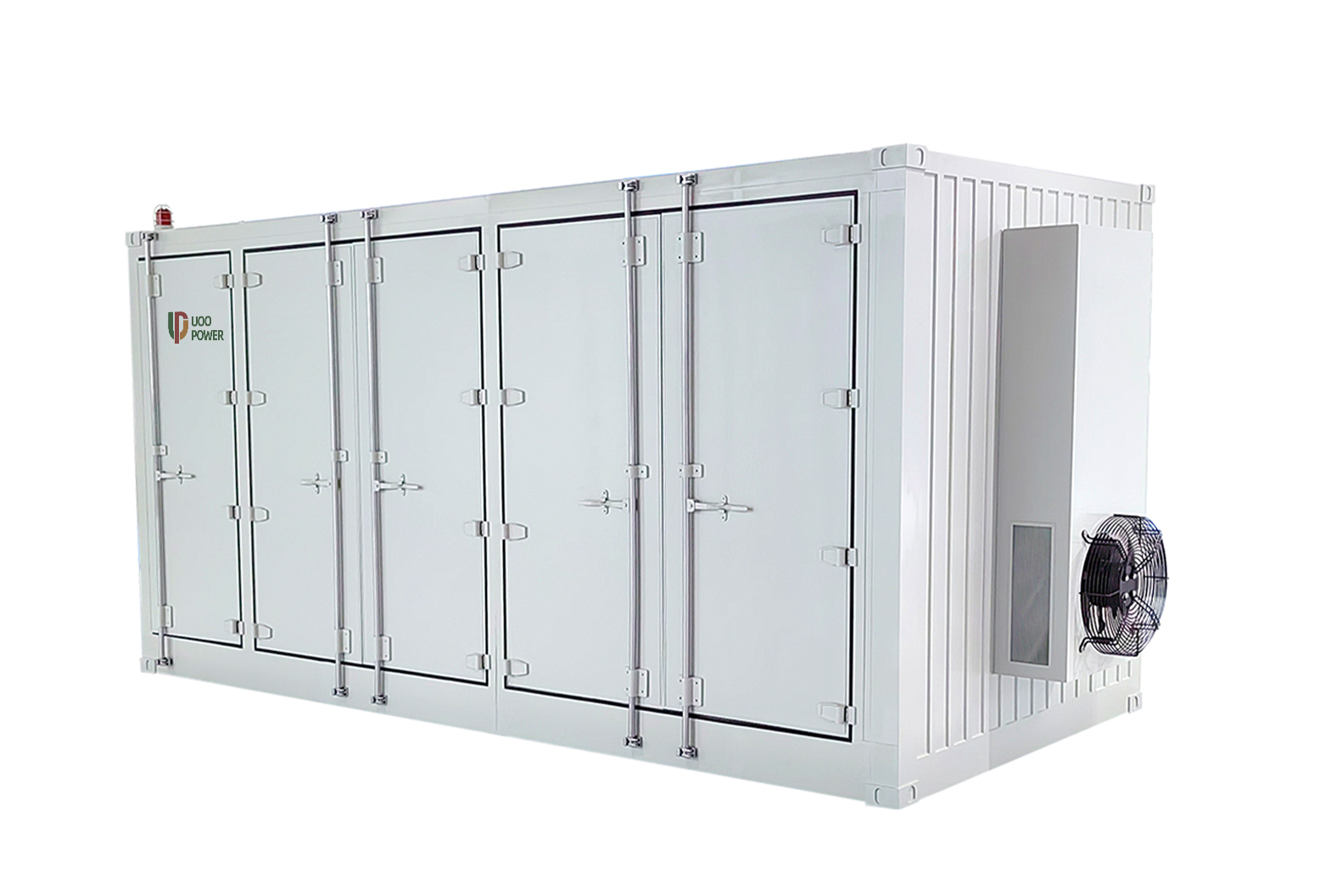

1MW Energy Storage System

  • Battery Type: LiFePO4
  • Dimension(L*W*H): (600*720*2050)*2 + 2800*1050*2050
  • Weight: 3325kg
  • Operating temperature: -30°C — 55°C

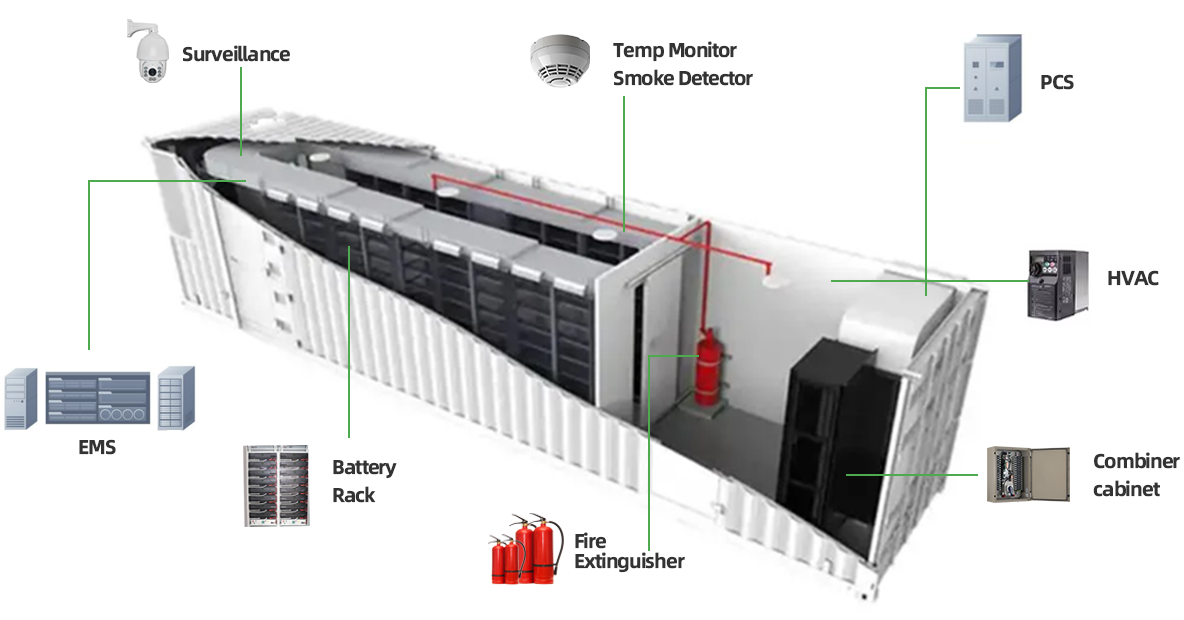

  • Integrated PCS, BMS, environment control
  • Fast data transfer
  • Event and alarm handling
  • System clock synchronization
Category

Wide Adaptation

Battery Type LiFePO4
Grid connection Hybrid grid
Model Number MP50500
Place of Origin Anhui, China
Dimension (L*W*H) (600 * 720 * 2050)*2+2800 * 1050 * 2050
Weight 3325kg
Communication Port rs485, CAN
Protection Class IP20
Cooling Air Cooling
Maximum output power 550
Rated voltage 400
Operating temperature -30℃–55℃
Rated current 722
Certificate TUV,CE
Maximum charging power 600/660/720
Charging and discharging working voltage 500-850
Rated frequency 50/60
Isolation transformer 315/400
Communication RS485,RS232,CAN
Selling units Single item
Single package size 400X250X630 cm
Single gross weight 3325.000 kg
Supply Ability 1000 Piece/Pieces per Week

Product Description

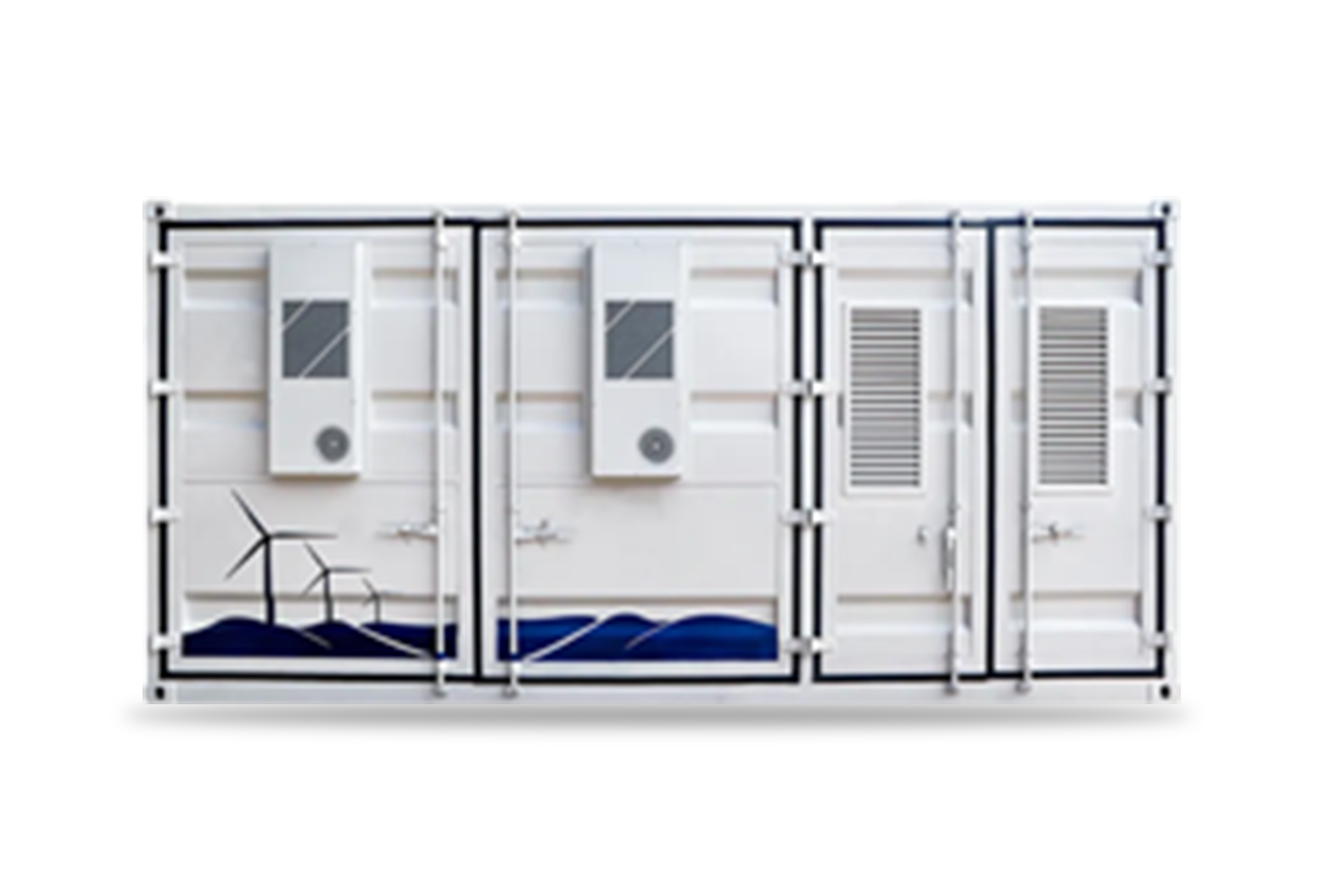

Lithium Battery Container Ess300kwh/500kwh/800kwh/1mwh

Wide Adaptation
